簡介

什么是指標？ 指標是顯示特定數據類型的指定工具。 通常這是關于價格系列屬性的信息，赫茲量化正是會對這種指標類型做進一步的討論。

每個指標還擁有自己的屬性和特性：例如，值的范圍，超買/超賣區間，交叉線、頂部和底部... 這些大量的屬性可連續地與主指標值共同使用。 但是，這些屬性并不總是有效。 有多種原因 - 指標窗口過小，低密度等。

本文目的旨在協助你改善描述性和信息性的指標值，以及促進代碼實施過程的部分自動化和簡易化。 我希望以下的代碼對專業開發人員和新手都不會造成困難。

本文主要面向的人群需至少擁有 赫茲量化入門水平知識，可以在代碼中實施簡單想法和算法，了解終端內的代碼存儲架構，并且可以使用庫（experts/libraries）和頭文件（experts/include）。

編輯切換為居中

1. 設置一項任務

所有指標中，我想要列出最具信息性的常用指標：

• 交叉線。

編輯

• 水平 - 不僅是交叉點的水平，整個水平都將高亮。

編輯

• 頂部/底部為簡單說明。

編輯

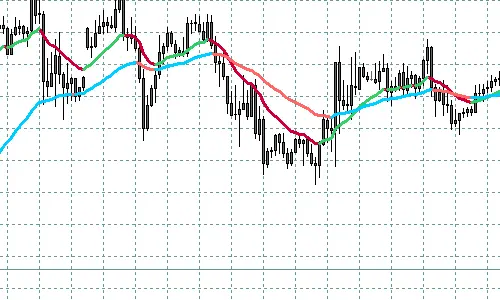

• 上行/下行方向使用不同配色。

編輯

赫茲量化來對其進行討論。

2. 基本概念

為避免誤解，赫茲量化花些時間來查看指標架構。

#property indicator_separate_window // number of visible buffers of the indicator #property indicator_buffers 3 // setting the range of indicator values #property indicator_minimum 0 #property indicator_maximum 100 // setting indicator colors #property indicator_color1 ?White #property indicator_color2 ?Red #property indicator_color3 ?Blue // external settings extern int RSIPeriod ? ? ? = 9; extern int AppliedPrice ? ?= 0; extern int MAPeriod ? ? ? ?= 5; // declaring indicator buffers. Here they can be declared in any order. // Any names can be given to buffers, though better meaningful double Values[]; ? ? ? ? ? // Values double SmoothedValues[]; ? // Smoothed values double Crosses[]; ? ? ? ? ?// intersections // Significant number of digits after a decimal point in indicator values int DigitsUsed = 5; // Used empty value. In MQL4 there are two empty values -- EMPTY (-1) // -- used as an empty parameter when calling functions // EMPTY_VALUE (0x7FFFFFFF) -- used as an unacceptable value // (or default value) of a variable in indicators and function calls. // The fact is, most built-in indicators return 0 if there is no value // Besides, in custom (iCustom) indicators the empty value can be // set as any, this must be noted. int EmptyValueUsed = 0; // Initialization function. int init() { ? // Number of used buffers can be larger than that of displayed ones; some ? // may contain intermediate calculations and additional information. The total ? // number of buffers including additional ones is displayed here. ? // If there are no additional buffers, ? // this line is not needed. Total number must not exceed 8 ? // IndicatorBuffers(3); ? // associate buffers. Indexes must go from 0 till the declared number (not including) ? // buffers are drawn in the order of index growing, this is important and can be ? // used when righting indicators further. ? // It means that a buffer with a larger index is drawn above the buffer with lower one ? SetIndexBuffer(0, Values); ? SetIndexBuffer(1, SmoothedValues); ? SetIndexBuffer(2, Crosses); ? // besides, it is important that additional buffers are located after displayed ones ? // (i.e. they must have higher index) otherwise problems may occur displaying buffers, ? // and sometimes the error can be hardly found ? // This function sets an empty value for the buffer with the preset index ? // I do not recommend to use this function in order to avoid possible difficulties ? // Default empty value for buffers -- EMPTY_VALUE. ? // Empty buffer values are not drawn in a chart (except for DRAW_ZIGZAG) ? // SetIndexEmptyValue(0, EMPTY_VALUE); ? ? // Set parameters for buffers ? SetIndexStyle(0, DRAW_LINE); ? ? // The main signal is a solid line ? SetIndexStyle(1, DRAW_LINE, STYLE_DASH); // Smoothed -- dotted line ? SetIndexStyle(2, DRAW_ARROW, STYLE_SOLID, 2); // Intersections -- crosses of the size 2 ? ? SetIndexArrow(2, 251); // cross code in Wingdings ? ? IndicatorDigits(DigitsUsed); // set number of significant digits after point ? ? // Setting the starting plotting point for each indicator. If in terms of the current index ? // the history depth ? // is lower than the value written here, the buffer value with this index will not be drawn. ? SetIndexDrawBegin(0, RSIPeriod); ? SetIndexDrawBegin(1, RSIPeriod + MAPeriod); ? SetIndexDrawBegin(2, RSIPeriod + MAPeriod + 1); ? return(0); } int start() { ? // counting number of bars for re-calculation ? int toCount = Bars - IndicatorCounted(); ? ? ? // Calculating values ? // counting from history start till the current moment ? for (int i = toCount - 1; i >=0; i--) ? { ? ? ?// I understood its convenience only when I started to use it ? ? ?// I recommend to conduct the normalization of data at once, ? ? ?// so that later comparison could be easily made ? ? ?Values[i] = NormalizeDouble(iRSI(Symbol(), 0, RSIPeriod, AppliedPrice, i), DigitsUsed); ? } ? ? ? ? // Counting smoothed values ? for (i = toCount - 1; i >=0; i--) ? { ? ? ?SmoothedValues[i] = NormalizeDouble(iMAOnArray(Values, 0, MAPeriod, 0, MODE_EMA, i), DigitsUsed); ? } ? ? ? ? // ... ? ? return(0); }
