一、查看本機配置和檢查dlib是否能用gpu，不能用gpu也行，就是處理速度不同，不在乎的話以下檢查可跳過。

我的顯卡:GTX750TI

本機原來就有裝cuda、cudnn（原來供tensorflow gpu使用）

1、查看cuda版本：

命令行輸入：nvcc --version

查到是v10.0版本；

2、查看cudnn版本

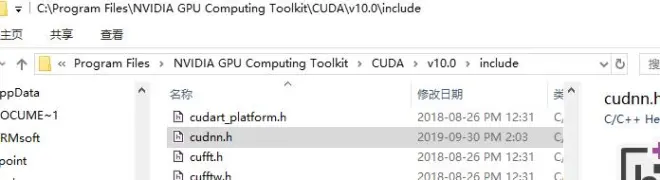

輸入文件地址打開查看

C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v10.0\include\cudnn.h

查到是7.6.5版本。

2、dlib是本地編譯安裝的（看我之前安裝配置的視頻可見，據說只有本地編譯才能使用GPU）

輸入命令查看dlib是否能用GPU：

>python

>>> import dlib

>>> print(dlib.DLIB_USE_CUDA)

OK可以使用gpu。

順便檢查一下tensorflow版本，這步是多余的，我只是忘了我裝的TF版本。

>>> tf.__version__

二、開始測試python調用face_recognition功能

1、打開python編輯器（我用的是jupyter lab，需安裝。）

在做測試的工程文件附近空白處按住shift鍵，同時點擊鼠標右鍵，在彈出菜單點擊箭頭處打開命令行終端，輸入jupyter lab回車執行：

即可打開編輯器，新建一個可即時運行python3的文件mian.ipynb：

2、寫入測試命令：

import face_recognition#導入人臉識別庫


import numpy as np

#人臉定位框
image = face_recognition.load_image_file('./pictures/unknown_pictures/1.jpg')#讀取一張圖片
face_locations = face_recognition.face_locations(image)#執行檢測并返回人臉位置
print('檢測到有 {} 人'.format(len(face_locations)))
print(face_locations)


#人臉對比
known_image = face_recognition.load_image_file('./pictures/known_people/TaylorSwift.jpg')
known_image_encoding = face_recognition.face_encodings(known_image)
unknown_image = face_recognition.load_image_file('./pictures/unknown_pictures/2.jpg')
unknown_image_encoding = face_recognition.face_encodings(unknown_image)[0]
result = face_recognition.compare_faces(known_image_encoding,unknown_image_encoding)
#print(unknown_image_encoding)
print(result)

#人臉截取
from matplotlib import pyplot as plt#繪圖庫
unknown_image = face_recognition.load_image_file('./pictures/unknown_pictures/4.jpg')#讀取一張圖片
face_locations = face_recognition.face_locations(unknown_image)#執行檢測并返回人臉位置

plt.figure(figsize=(10,10))#figsize里面的系數越大，畫布越大，當然運行時間越長
plt.imshow(unknown_image)#處理將要顯示的圖片
plt.show()#顯示主圖片

plt.figure(figsize=(10,10))#figsize里面的系數越大，畫布越大，當然運行時間越長
for i,face_location in enumerate(face_locations):
??? top, right, bottom, left = face_location
??? #print(i,top, right, bottom, left)
??? plt.subplot(350+i+1)
??? plt.imshow(unknown_image[top:bottom,left:right])#處理將要顯示經切片的圖片,numpy.ndarray的切片方法
plt.show()#顯示圖片

type(unknown_image)

#人臉畫框,注釋
from matplotlib import pyplot as plt#繪圖庫
unknown_image = face_recognition.load_image_file('./pictures/unknown_pictures/4.jpg')#讀取一張圖片
face_locations = face_recognition.face_locations(unknown_image, number_of_times_to_upsample=0, model="cnn")#執行HOG模型檢測并返回人臉位置（相對慢）,使用神經網絡檢測number_of_times_to_upsample=0, model="cnn"，初加載會比較慢，加載后再檢測就很快了。
plt.figure(figsize=(10,10))#figsize里面的系數越大，畫布越大，當然運行時間越長
plt.imshow(unknown_image)#處理將要顯示的圖片

for i,face_location in enumerate(face_locations):
??? top, right, bottom, left = face_location
??? #print(i,top, right, bottom, left)
??? #畫定位框,plt.Rectangle((起點)，框尺寸）
??? people_color = '#%06x'%np.random.randint(0xffffff)#隨機6個十六進制的顏色顏色
??? plt.text(left, top-8, i, bbox={'facecolor':people_color, 'alpha':0.5, 'pad':1})#添加注釋
??? plt.gca().add_patch(plt.Rectangle((left, top), bottom - top, right - left,fill=False,linewidth = 2,edgecolor = people_color))#執行畫框
plt.show()#顯示圖片

type(unknown_image)

#檢測并繪制關鍵點
from matplotlib import pyplot as plt#繪圖庫
image = face_recognition.load_image_file('./pictures/unknown_pictures/10.jpg')#讀取一張圖片
face_landmarks_list = face_recognition.face_landmarks(image)
plt.figure(figsize=(10,10))#figsize里面的系數越大，畫布越大，當然運行時間越長
plt.imshow(image)#處理將要顯示的圖片
a = face_landmarks_list[0]
for wuguan? in a.values():
??? for sxy in wuguan:
??????? #print(sxy)
??????? plt.scatter(sxy[0], sxy[1], c='b', s=5)#執行畫點
plt.show()#顯示圖片

#攝像頭檢測人臉
import face_recognition
import numpy as np
import CV2
import numpy as np
from PIL import Image, ImageDraw, ImageFont


def CV2ImgAddText1(img, text, left, top, textColor=(0, 255, 0), textSize=20):#opencv不支持中文，得用這個函數解決
??? fontText = ImageFont.truetype("./simsun.ttc", textSize)
??? img_pil = Image.fromarray(img)
??? draw = ImageDraw.Draw(img_pil)
??? draw.text((left, top), text, fill = textColor, font=fontText)
??? img = np.array(img_pil)
??? return img
? ?


# This is a super simple (but slow) example of running face recognition on live video from your webcam.
# There's a second example that's a little more complicated but runs faster.

# PLEASE NOTE: This example requires OpenCV (the `CV2` library) to be installed only to read from your webcam.
# OpenCV is *not* required to use the face_recognition library. It's only required if you want to run this
# specific demo. If you have trouble installing it, try any of the other demos that don't require it instead.

# Get a reference to webcam #0 (the default one)
video_capture = CV2.VideoCapture(0)

# Load a sample picture and learn how to recognize it.
obama_image = face_recognition.load_image_file("./pictures/known_people/TaylorSwift.jpg")
obama_face_encoding = face_recognition.face_encodings(obama_image)[0]

# Load a second sample picture and learn how to recognize it.
biden_image = face_recognition.load_image_file("./pictures/known_people/Clinton.jpg")
biden_face_encoding = face_recognition.face_encodings(biden_image)[0]

# Create arrays of known face encodings and their names
known_face_encodings = [
??? obama_face_encoding,
??? biden_face_encoding
]
known_face_names = [
??? "TaylorSwift",
??? "Clinton"
]

# Initialize some variables
face_locations = []
face_encodings = []
face_names = []
process_this_frame = True

while True:
??? # Grab a single frame of video
??? ret, frame = video_capture.read()

??? # Resize frame of video to 1/4 size for faster face recognition processing
??? small_frame = CV2.resize(frame, (0, 0), fx=0.25, fy=0.25)

??? # Convert the image from BGR color (which OpenCV uses) to RGB color (which face_recognition uses)
??? rgb_small_frame = small_frame[:, :, ::-1]

??? # Only process every other frame of video to save time
??? if process_this_frame:
??????? # Find all the faces and face encodings in the current frame of video
??????? face_locations = face_recognition.face_locations(rgb_small_frame, model="cnn")#使用神經網絡檢測
??????? face_encodings = face_recognition.face_encodings(rgb_small_frame, face_locations)

??????? face_names = []
??????? for face_encoding in face_encodings:
??????????? # See if the face is a match for the known face(s)
??????????? matches = face_recognition.compare_faces(known_face_encodings, face_encoding)
??????????? name = "Unknown"

??????????? # # If a match was found in known_face_encodings, just use the first one.
??????????? # if True in matches:
??????????? #???? first_match_index = matches.index(True)
??????????? #???? name = known_face_names[first_match_index]

??????????? # Or instead, use the known face with the smallest distance to the new face
??????????? face_distances = face_recognition.face_distance(known_face_encodings, face_encoding)
??????????? best_match_index = np.argmin(face_distances)
??????????? if matches[best_match_index]:
??????????????? name = known_face_names[best_match_index]

??????????? face_names.append(name)

??? process_this_frame = not process_this_frame


??? # Display the results
??? for (top, right, bottom, left), name in zip(face_locations, face_names):#[face_locations, face_names]
??????? # Scale back up face locations since the frame we detected in was scaled to 1/4 size
??????? top *= 4
??????? right *= 4
??????? bottom *= 4
??????? left *= 4

??????? # Draw a box around the face
??????? CV2.rectangle(frame, (left, top), (right, bottom), (0, 0, 255), 2)

??????? # Draw a label with a name below the face
??????? CV2.rectangle(frame, (left, bottom - 35), (right, bottom), (0, 0, 255), CV2.FILLED)
??????? #font = CV2.FONT_HERSHEY_DUPLEX
??????? #CV2.putText(frame, name, (left + 6, bottom - 6), font, 1.0, (255, 255, 255), 1)
??????? frame = CV2ImgAddText1(frame, name, left, bottom-25, textColor=(0, 255, 0),textSize=20)#opencv不支持中文，得用這個函數解決

??? # Display the resulting image
??? CV2.imshow('Video', frame)

??? # Hit 'q' on the keyboard to quit!
??? if CV2.waitKey(1) & 0xFF == ord('q'):
??????? break

# Release handle to the webcam
video_capture.release()
CV2.destroyAllWindows()

#動態截屏檢測
from PIL import ImageGrab
import face_recognition
import numpy as np
import CV2
from PIL import Image, ImageDraw, ImageFont


def CV2ImgAddText1(img, text, left, top, textColor=(0, 255, 0), textSize=20):#CV2.putText不支持中文，得用這個函數解決
??? fontText = ImageFont.truetype("./simsun.ttc", textSize)
??? img_pil = Image.fromarray(img)
??? draw = ImageDraw.Draw(img_pil)
??? draw.text((left, top), text, fill = textColor, font=fontText)
??? img = np.array(img_pil)
??? return img
? ?

# Load a sample picture and learn how to recognize it.
obama_image = face_recognition.load_image_file("./pictures/known_people/TaylorSwift.jpg")
TaylorSwift_face_encoding = face_recognition.face_encodings(obama_image)[0]

# Load a second sample picture and learn how to recognize it.
biden_image = face_recognition.load_image_file("./pictures/known_people/Clinton.jpg")
Clinton_face_encoding = face_recognition.face_encodings(biden_image)[0]

# Load a second sample picture and learn how to recognize it.
biden_image = face_recognition.load_image_file("./pictures/known_people/馬云.jpg")
mayun_face_encoding = face_recognition.face_encodings(biden_image)[0]

# Load a second sample picture and learn how to recognize it.
biden_image = face_recognition.load_image_file("./pictures/known_people/成龍.jpg")
chenglong_face_encoding = face_recognition.face_encodings(biden_image)[0]



# Create arrays of known face encodings and their names
known_face_encodings = [
??? TaylorSwift_face_encoding,
??? Clinton_face_encoding,
??? mayun_face_encoding,
??? chenglong_face_encoding
]
known_face_names = [
??? "Taylor Swift",
??? "Clinton",
??? "馬云",
??? "成龍"
]

# Initialize some variables
face_locations = []
face_encodings = []
face_names = []
process_this_frame = True

while True:
??? # Grab a single frame of video
??? frame = np.array(ImageGrab.grab(bbox=(0, 40, 800, 600)))#動態截屏
??? # Resize frame of video to 1/4 size for faster face recognition processing
??? small_frame = CV2.resize(frame, (0, 0), fx=0.45, fy=0.45)

??? # Convert the image from BGR color (which OpenCV uses) to RGB color (which face_recognition uses)
??? rgb_small_frame = small_frame

??? # Only process every other frame of video to save time
??? if process_this_frame:
??????? # Find all the faces and face encodings in the current frame of video
??????? face_locations = face_recognition.face_locations(rgb_small_frame, model="cnn")#使用神經網絡檢測
??????? face_encodings = face_recognition.face_encodings(rgb_small_frame, face_locations)
??????? face_names = []
??????? for face_encoding in face_encodings:
??????????? # See if the face is a match for the known face(s)
??????????? matches = face_recognition.compare_faces(known_face_encodings, face_encoding, tolerance=0.6)
??????????? name = "Unknown"

??????????? # # If a match was found in known_face_encodings, just use the first one.
??????????? # if True in matches:
??????????? #???? first_match_index = matches.index(True)
??????????? #???? name = known_face_names[first_match_index]

??????????? # Or instead, use the known face with the smallest distance to the new face
??????????? face_distances = face_recognition.face_distance(known_face_encodings, face_encoding)
??????????? best_match_index = np.argmin(face_distances)
??????????? if matches[best_match_index]:
??????????????? name = known_face_names[best_match_index]
??????????? face_names.append(name)
??? process_this_frame = not process_this_frame

??? # Display the results
??? for (top, right, bottom, left), name in zip(face_locations, face_names):
??????? # Scale back up face locations since the frame we detected in was scaled to 1/4 size
??????? top = int(top * 0.9)
??????? right = int(right * 1)
??????? bottom = int(bottom * 1.1)
??????? left = int(left * 0.98)
??????? # Draw a box around the face
??????? CV2.rectangle(small_frame, (left, top), (right, bottom-5), (10, 0, 100), 1)

??????? # Draw a label with a name below the face
??????? CV2.rectangle(small_frame, (left, bottom - 10), (right, bottom), (10, 0, 100), CV2.FILLED)
??????? font = CV2.FONT_HERSHEY_DUPLEX
??????? #CV2.putText(frame, name, (left + 6, bottom - 6), font, 1.0, (255, 255, 255), 1)
??????? small_frame = CV2ImgAddText1(small_frame, name, left, bottom-10, textColor=(255, 2, 255),textSize=10)#CV2.putText不支持中文，得用這個函數解決
??? small_frame = CV2.resize(small_frame, (800, 550))
??? # Display the resulting image
??? CV2.imshow('Video', small_frame[:,:,::-1])

??? # Hit 'q' on the keyboard to quit!
??? if CV2.waitKey(1) & 0xFF == ord('q'):
??????? break


CV2.destroyAllWindows()
