Examining Centaur CHA’s Die and Implementation Goals

外文資料，附機翻，圖片有數量上限自己對一下吧

April 30, 2022 clamchowder Leave a comment

In our last article, we examined Centaur’s CNS architecture. Centaur had a long history as a third x86 CPU designer, and CNS was the last CPU architecture Centaur had in the works before they were bought by Intel. In this article, we’ll take a look at Centaur CHA’s physical implementation. CHA is Centaur’s name for their system-on-chip (SoC) that targets edge server inference workloads by integrating a variety of blocks. These include:

• Eight x86-compatible CNS cores running at up to 2.5 GHz

• NCore, a machine learning accelerator, also running at 2.5 GHz

• 16 MB of L3 cache

• Quad channel DDR4 controller

• 44 PCIe lanes, and IO links for dual socket support

We’re going to examine how CHA allocates die area to various functions. From there, we’ll discuss how Centaur’s design goals influenced their x86 core implementation.Compared to Haswell-ECentaur says CNS has similar IPC to Haswell, so we’ll start with that obvious comparison. CHA is fabricated on TSMC’s 16nm FinFET process node, with a 194 mm2die size. Haswell-E was fabricated on Intel’s 22nm FinFET process node and the 8 core die is 355 mm2. So by server and high end desktop standards, the CHA die is incredibly compact.

CHA ends up being just slightly larger than half of Haswell-E, even though both chips are broadly comparable in terms of core count and IO capabilities. Both chips have eight cores fed by a quad channel DDR4 controller, and support dual socket configurations. Differences from the CPU and IO side are minor. CHA has slightly more PCIe lanes, with 44 compared to Haswell-E’s 40. And Haswell has 20 MB of L3 cache, compared to 16 MB on CHA. Now, let’s break down die area distribution a bit. The Haswell cores themselves occupy just under a third of the die. Add the L3 slices and ring stops, and we’ve accounted for about 50% of die area. The rest of the chip is used to implement IO.

CHA also has eight cores and similar amounts of IO. Like with Haswell-E, IO takes up about half the die. But the eight CNS cores and their L3 cache occupy a third of the die, compared to half on Haswell-E. That leaves enough die area to fit Centaur’s NCore. This machine learning accelerator takes about as much area as the eight CNS cores, so it was definitely a high priority for CHA’s design.

Centaur and Intel clearly have different goals. Haswell-E serves as a high end desktop chip, where it runs well above 3 GHz to achieve higher CPU performance. That higher performance especially applies in applications that don’t have lots of parallelism. To make that happen, Intel dedicates a much larger percentage of Haswell-E’s die area towards CPU performance. Haswell cores use that area to implement large, high clocking circuits. They’re therefore much larger, even after a process node shrink to Intel’s 14nm process (in the form of Broadwell).

In contrast, Centaur aims to make their cores as small as possible. That maximizes compute density on a small die, and makes room for NCore. Unlike Intel, CNS doesn’t try to cover a wide range of bases. Centaur is only targeting edge servers. In those environments, high core counts and limited power budget usually force CPUs to run at conservative clock speeds anyway. It’s no surprise that clock speed takes a back to seat to high density. The result is that CNS achieves roughly Haswell-like IPC in a much smaller core, albeit one that can’t scale to higher performance targets. We couldn’t get a Haswell based i7-4770 to perfectly hit 2.2 GHz, but you get the idea:

7-Zip has a lot of branches, and a lot of them seem to give branch predictors a hard time. In our previous article, we noted that Haswell’s branch predictor could track longer history lengths, and was faster with a lot of branches in play. That’s likely responsible for Haswell’s advantage in 7-Zip. Unfortunately, we don’t have documented performance counters for CNS, and can’t validate that hypothesis. Video encoding is a bit different. Branch performance takes a back seat to vector throughput. Our test uses libx264, which can use AVX-512. AVX-512 instructions account for about 14.67% of executed instructions, provided the CPU supports them. CNS roughly matches Haswell’s performance per clock in this scenario. But again, Haswell is miles ahead when the metaphorical handbrake is off:

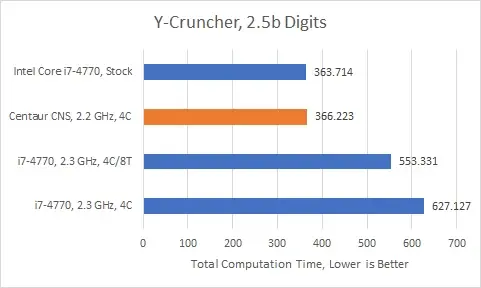

CNS is most competitive when specialized AVX-512 instructions come into play. Y-Cruncher is an example of this, with 23.29% of executed instructions belonging to the AVX-512 ISA extension. VPMADD52LUQ (12.76%) and VPADDQ (9.06%) are the most common AVX-512 instructions. The former has no direct AVX2 equivalent as far as I know.

Even though its vector units are not significantly more powerful than Haswell’s, CNS knocks this test out of the park. At similar clock speeds, Haswell gets left in the dust. It still manages to tie CNS at stock, showing the difference high clock speeds can make. We also can’t ignore Haswell’s SMT capability, which helps make up some of its density disadvantage.Compared to Zeppelin and Coffee LakePerhaps comparisons with client dies make more sense, since they’re closer in area to CHA. AMD’s Zeppelin (Zen 1) and Intel’s Coffee Lake also contain eight cores with 16 MB of L3. Both are especially interesting because they’re implemented on process nodes that are vaguely similar to CHA’s.

Let’s start with Zeppelin. This AMD die implements eight Zen 1 cores in two clusters of four, each with 8 MB of L3. It’s about 9% larger than CHA, but has half as many DDR4 channels. Zeppelin has fewer PCIe lanes as well, with 32 against CHA’s 44.

L3 area is in the same ballpark on both Zeppelin and CHA, suggesting that TSMC 16nm and GlobalFoundries 14nm aren’t too far apart when high density SRAM is in play. Core area allocation falls between CHA and Haswell-E’s, although percentage-wise, it’s closer to the latter. A lot of space on Zeppelin that doesn’t belong to cores, cache, DDR4, or PCIe. That’s because Zeppelin is a building block for everything. Desktops are served with a single Zepplin die that provides up to eight cores. Workstations and servers get multiple dies linked together to give more cores, more memory controller channels, and more PCIe. In the largest configuration, a single Epyc server chip uses four Zeppelins to give 32 cores, eight DDR4 channels, and 128 PCIe lanes. Zeppelin’s flexibility lets AMD streamline production. But nothing in life is free, and die space is used to make that happen. For client applications, Zeppelin tries to bring a lot of traditional chipset functionality onto its die. It packs a quad port USB 3.1 controller. That takes space. Some PCIe lanes can operate in SATA mode to support multi-mode M.2 slots, which means extra SATA controller logic. Multi-die setups are enabled by cross-die links (called Infinity Fabric On Package, or IFOP), which cost area as well. AMD’s Zen 1 core was probably designed with that in mind. It can’t clock low because it has to reach desktop performance levels, so density is achieved by sacrificing vector performance. Zen 1 uses 128-bit execution units and registers, with 256-bit AVX instructions split into two micro-ops.

Then, Zen 1 took aim at modest IPC goals, and gave up on extremely high clock speeds. That helps improve their compute density, and lets them fit eight cores in a die that has all kinds of other connectivity packed into it. Like Haswell, Zen uses SMT to boost multithreaded performance with very little die area overhead.

In its server configuration, Zen 1 can’t boost as high as it can on desktops. But it still has a significant clock speed advantage over CNS on low threaded parts of workloads. Like Haswell, Zen 1 delivers better performance per clock than CNS with 7-Zip compression.

With video encoding, CNS again falls behind. Part of that is down to clock speed. Zen 1’s architecture is also superior in some ways. AMD has a large non-scheduling queue for vector operations, which can prevent renamer stalls when lots of vector operations are in play. In this case, that extra “fake” scheduling capacity seems to be more valuable than CNS’s higher execution throughput.

Finally, CNS leaves Zen 1 in the dust if an application very heavy on vector compute, and can take advantage of AVX-512. In Y-Cruncher, Zen 1 is no match for CNS.Intel’s Coffee LakeCoffee Lake’s die area distribution looks very different. Raw CPU performance is front and center, with CPU cores and L3 cache taking more than half the die.

About a quarter of Coffee Lake’s die goes to an integrated GPU. In both absolute area and percentage terms, Comet Lake’s iGPU takes up more space than Centaur’s NCore, showing the importance Intel places on integrated graphics. After the cores, cache, and iGPU are accounted for, there’s not much die area left. Most of it is used to implement modest IO capabilities. That makes Coffee Lake very area efficient. It packs more CPU power into a smaller die than CHA or Zeppelin, thanks to its narrow focus on client applications. Like Haswell and Zen, the Skylake core used in Coffee Lake looks designed to reach very high clocks, at the expense of density. It’s much larger than CNS and Zen 1, and clocks a lot higher too.

Intel also sacrifices some area to make Skylake “AVX-512 ready”, for lack of a better term. This lets the same basic core design go into everything from low power ultrabooks to servers and supercomputers, saving design effort.

Perhaps it’s good to talk about AVX-512 for a bit, since that’s a clear goal in both Skylake and CNS’s designs.AVX-512 Implementation ChoicesCNS’s AVX-512 implementation looks focused on minimizing area overhead, rather than maximizing performance gain when AVX-512 instructions are used. Intel has done the opposite with Skylake-X. To summarize some AVX-512 design choices:

AVX-512 Implementation Detail

Intel Skylake-X

Centaur CNS

Comments

Vector Register File

Full width 512-bit registers (10.5 KB total)

512-bit architectural registers take two 256-bit physical registers (4.5 KB total)

SKL-X has a lot more renaming capacity when 512-bit registers are used

Mask Register File

Separate physical register file with 128 renames (additional 1 KB of registers)

Shares scalar integer register file (GPRs)

Scalar integer code is still common in AVX-512 code, and SKL-X’s separate mask register file avoids contention

Floating Point Vector Execution

2×512-bit FMA per cycle

2×256-bit FMA per cycle. 512-bit instructions decode into two micro-ops

Intel’s going for maximum throughput, but those extra FP units are large

Integer Vector Execution

2×512-bit vector integer add per cycle

3×256-bit vector integer add per cycle

Intel is still better set up to get the most out of AVX-512.

To me, CNS is very interesting because it shows how decent AVX-512 support can be implemented with as little cost as possible. Furthermore, CNS demonstrates that reasonably powerful vector units can be implemented in a core that takes up relatively little area. To be clear, this kind of strategy may not offer the best gains from AVX-512:

But it can still offer quite a bit of performance improvement in certain situations, as the benchmark above shows.Thoughts about Centaur’s DesignCentaur aimed to create a low cost SoC that combines powerful inference capabilities with CPU performance appropriate for a server. Low cost means keeping die area down. But Centaur’s ML goals mean dedicating significant die area toward its NCore accelerator. Servers need plenty of PCIe lanes for high bandwidth network adapters, and that takes area too. All of that dictates a density oriented CPU design, in order to deliver the required core count within remaining space. To achieve this goal, Centaur started by targeting low clocks. High clocking designs usually take more area, and that’s especially apparent on Intel’s designs. There are tons of reasons for this. To start, process libraries designed for high speeds occupy more area than ones designed for high density. For example, Samsung’s high performance SRAM bitcells occupy 0.032 μm2 on their 7nm node, while their high density SRAM takes 0.026 μm2. Then, higher clock speeds often require longer pipelines, and buffers between pipeline stages take space. On top of that, engineers might use more circuitry to reduce the number of dependent transitions that have to complete within a cycle. One example is using carry lookahead adders instead of simpler carry propagate adders, where additional gates are used to compute whether a carry will be needed at certain positions, rather than wait for a carry signal to propagate across all of a number’s binary digits. Then, AVX-512 is supported with minimal area overhead. Centaur extended the renamer’s register alias table to handle AVX-512 mask registers. They tweaked the decoders to recognize the extra instructions. And they added some execution units for specialized instructions that they cared for. I doubt any of those took much die area. CNS definitely doesn’t follow Intel’s approach of trying to get the most out of AVX-512, which involves throwing core area at wider execution units and registers. Finally, Centaur set modest IPC goals. They aimed for Haswell-like performance per clock, at a time when Skylake was Intel’s top of the line core. That avoids bloating out-of-order execution buffers and queues to chase diminishing IPC gains. To illustrate this, let’s look at simulated reorder buffer (ROB) utilization in an instruction trace of a 7-Zip compression workload. A CPU’s ROB tracks all instructions until their results are made final, so its capacity represents an upper bound for a CPU’s out of order execution window. We modified ChampSim to track ROB occupancies every cycle, to get an idea of how often a certain number of ROB entries are utilized.

Most cycles fall into one of two categories. We either see less than 200 entries used. Or the ROB is basically filling up, indicating it’s not big enough to absorb latency. We can also graph the percentage of cycles for which ROB utilization is below a certain point (below). Again, we see clearly diminishing returns from increased reordering capacity.

Increasing ROB size implies beefing up other out-of-order buffers too. The renamed register files, scheduler, and load/store queues will have to get bigger, or they’ll fill up before the ROB does. That means IPC increases require disproportionate area tradeoffs, and Centaur’s approach has understandably been conservative. The resulting CNS architecture ends up being very dense and well suited to CHA’s target environment, at the expense of flexibility. Under a heavy AVX load, the chip draws about 65 W at 2.2 GHz, but power draw at 2.5 GHz goes up to 140 W. Such a sharp increase in power consumption is a sign that the architecture won’t clock much further. That makes CNS completely unsuitable for consumer applications, where single threaded performance is of paramount importance. At a higher level, CHA also ends up being narrowly targeted. Even though CNS cores are small, each CHA socket only has eight of them. That’s because Centaur spends area on NCore and uses a very small die. CHA therefore falls behind in multi-threaded CPU throughput, and won’t be competitive in applications that don’t use NCore’s ML acceleration capabilities. Perhaps the biggest takeaway from CNS is that it’s possible to implement powerful vector units a physically small core, as long as clock speed and IPC targets are set with density in mind.

Core Width, Integer ALUs, and ROB Capacity

Vector Execution

Clock Speed

Centaur CNS

4-wide, 4 ALUs, 192 entry ROB

2×256-bit FMA3×256-bit vector integer

2.5 GHz

Haswell

4-wide, 4 ALUs, 192 entry ROB

2×256-bit FMA2×256-bit vector integer

4.4 GHz (client)

Zen 1

5-wide, 4 ALUs, 192 entry ROB

2×128-bit FMA + 2×128-bit FADD3×128-bit vector integer

4.2 GHz (HEDT)

Skylake (Client)

4-wide, 4 ALUs, 224 entry ROB

2×256-bit FMA3×256-bit vector integer

5+ GHz

Tremont

4-wide, 4 ALUs, 208 entry ROB

1×128-bit FADD + 1×128-bit FMUL2×128-bit vector integer

3 GHz

Surface-level look at core width/reodering capacity, vector execution, and clock speedsCentaur did all this with a team of around 100 people, on a last-generation process node. That means a density oriented design is quite achievable with limited resources. I wonder what AMD or Intel could do with their larger engineering teams and access to cutting edge process nodes, if they prioritized density.What Could Have Been?Instead of drawing a conclusion, let’s try something a little different. I’m going to speculate and daydream about how else CNS could have been employed.Pre-2020 – More Cores?CHA tries to be a server chip with the die area of a client CPU. Then it tries to stuff a machine learning accelerator on the same die. That’s crazy. CHA wound up with fewer cores than Intel or AMD server CPUs, even though CNS cores prioritized density. What if Centaur didn’t try to create a server processor with the area of a client die? If we quadruple CHA’s 8-core CPU complex along with its cache, that would require about 246 mm2 of die area. Of course, IO and connectivity would require space as well. But it’s quite possible for a 32 core CNS chip to be implemented using a much smaller die than say, a 28-core Skylake-X chip.

A fully enabled 28 core Skylake-X chip would likely outperform a hypothetical 32 core CNS one. But Intel uses 677.98 mm2 to do that. A few years ago, Intel also suffered from a shortage of production capacity on their 14nm process. All of that pushes up prices for Skylake-X. That gives Centaur an opportunity to undercut Intel. Using a much smaller die on a previous generation TSMC node should make for a cheap chip. Before 2019, AMD could also offer 32 cores per socket with their top end Zen 1 Epyc SKUs. Against that, CNS would compete by offering AVX-512 support and better vector performance.Post 2020 – A Die Shrink?But AMD’s 2019 Zen 2 launch changes things. CNS’s ability to execute AVX-512 instructions definitely gives it an advantage. But Zen 2 has 256-bit execution units and registers just like CNS. More importantly, Zen 2 has a process node advantage. AMD uses that to implement a more capable out-of-order execution engine, more cache, and faster caches.

That puts CNS in a rough position.

Core for core, CNS stands no chance. Even if we had CNS running at 2.5 GHz, its performance simply isn’t comparable to Zen 2. It gets worse in file compression:

Even in Y-Cruncher, which is a best case for CNS, Zen 2’s higher clocks and SMT support let it pull ahead.

Worse, TSMC’s 7nm process lets AMD pack 64 of those cores into one socket. In my view, CNS has to be ported to a 7nm class process to have any chance after 2020. It’s hard to guess what that would look like, but I suspect a CNS successor on 7nm would fill a nice niche. It’d be the smallest CPU core with AVX-512 support. Maybe it could be an Ampere Altra competitor with better vector performance. Under Intel, CNS could bring AVX-512 support to E-Cores in Intel’s hybrid designs. That would fix Alder Lake’s mismatched ISA awkwardness. Compared to Gracemont, CNS probably wouldn’t perform as well in integer applications, but vector performance would be much better. And CNS’s small core area would be consistent with Gracemont’s area efficiency goal. Perhaps a future E-Core could combine Gracemont’s integer prowess with CNS’s vector units and AVX-512 implementation.

Centaur CHA’s Probably Unfinished Dual Socket Implementation

April 23, 2022 clamchowder Leave a comment

Centaur’s CHA chip targets the server market with a low core count. Its dual socket capability is therefore quite important, because it’d allow up to 16 cores in a single CHA-based server. Unfortunately for Centaur, modern dual socket implementations are quite complicated. CPUs today use memory controllers integrated into the CPU chip itself, meaning that each CPU socket has its own pool of memory. If CPU cores on one socket want to access memory connected to another socket, they’ll have to go through a cross-socket link. That creates a setup with non-uniform memory access (NUMA). Crossing sockets will always increase latency and reduce bandwidth, but a good NUMA implementation will minimize those penalties.

Cross-Socket LatencyHere, we’ll test how much latency the cross-socket link adds by allocating memory on different nodes, and using cores on different nodes to access that memory. This is basically our latency test being run only at the 1 GB test size, because that size is large enough to spill out of any caches. And we’re using 2 MB pages to avoid TLB miss penalties. That’s not realistic for most consumer applications, which use 4 KB pages, but we’re trying to isolate NUMA-related latency penalties instead of showing memory latency that applications will see in practice.

Crossing sockets adds about 92 ns of additional latency, meaning that memory on a different socket takes almost twice as long to access. For comparison, Intel suffers less of a penalty.

On a dual socket Broadwell system, crossing sockets adds 42 ns of latency with the early snoop setting. Accessing remote memory takes 41.7% longer than hitting memory directly attached to the CPU. Compared to CNS, Intel is a mile ahead, partially because that early snoop mode is optimized for low latency. The other part is that Intel has plenty of experience working on multi-socket capable chips. If we go back over a decade to Intel’s Westmere based Xeon X5650, memory access latency on the same node is 70.3 ns, while remote memory access is 121.1 ns. The latency delta there is just above 50 ns. It’s worse than Broadwell, but still significantly better than Centaur’s showing.

Broadwell also supports a cluster-on-die setting, which creates two NUMA nodes per socket. In this mode, a NUMA node covers a single ring bus, connected to a dual channel DDR4 memory controller. This slightly reduces local memory access latency. But Intel has a much harder time with four pools of memory in play. Crossing sockets now takes almost as long as it does on CHA. Looking closer, we can see that memory latency jumps by nearly 70 ns when accessing “remote” memory connected to the same die. That’s bigger than the cross-socket latency delta, and suggests that Intel takes a lot longer to figure out where to send a memory request if it has three remote nodes to pick from.

Popping over to AMD, we have results from when we tested a Milan-X system on Azure. Like Broadwell’s cluster on die mode, AMD’s NPS2 mode creates two NUMA nodes within a socket. However, AMD seems to have very fast directories for figuring out which node is responsible for a memory address. Going from one half of a socket to another only adds 14.33 ns. The cross socket connection on Milan-X adds around 70-80 ns of latency, depending on which half of the remote socket you’re accessing. To summarize, Centaur’s cross-node latency is mediocre. It’s worse than what we see from Intel or AMD, unless the Intel Broadwell system is juggling four NUMA nodes. But it’s not terrible for a company that has no experience in multi-socket designs.Cross-Socket BandwidthNext, we’ll test bandwidth. Like with the latency test, we’re running our bandwidth test with different combinations of where memory is allocated and what CPU cores are used. The test size here is 3 GB, because that’s the largest size we have hardcoded into our bandwidth test. Size doesn’t really matter as long as it’s big enough to get out of caches. To keep things simple, we’re only testing read bandwidth.

Centaur’s cross socket bandwidth is disastrously poor at just above 1.3 GB/s. When you can read faster from a good NVMe SSD, something is wrong. For comparison, Intel’s decade old Xeon X5650 can sustain 11.2 GB/s of cross socket bandwidth, even though its triple channel DDR3 setup only achieved 20.4 GB/s within a node. A newer design like Broadwell does even better.

With each socket represented by one NUMA node, Broadwell can get nearly 60 GB/s of read bandwidth from its four DDR4-2400 channels. Accessing that from a different socket drops bandwidth to 21.3 GB/s. That’s quite a jump over Westmere, showing the progress Intel has made over the past decade. If we switch Broadwell into cluster on die mode, each node of seven cores can still pull more cross-socket bandwidth than what Centaur can achieve. Curiously, Broadwell suffers a heavy penalty from crossing nodes within a die, with memory bandwidth cut approximately in half.

Finally, let’s have a look at AMD’s Milan-X:

Milan-X is a bandwidth monster compared to the other chips here. It has twice as many DDR4 channels as CHA and Broadwell, so high intra-node bandwidth comes as no surprise. Across nodes, AMD retains very good bandwidth when accessing the other half of the same socket. Across sockets, each NPS2 node can still pull over 40 GB/s, which isn’t far off CHA’s local memory bandwidth.Core to Core Latency with Contested AtomicsOur last test evaluates cache coherency performance by using locked compare-and-exchange operations to modify data shared between two cores. Centaur does well here, with latencies around 90 to 130 ns when crossing sockets.

The core to core latency plot above is similar to Ampere Altra’s, where cache coherency operations on a cache line homed to a remote socket require a round trip over the cross-socket interconnect, even when the two cores communicating with each other are on the same chip. However, absolute latencies on CHA are far lower, thanks to CHA having far fewer cores and a less complex topology. Intel’s Westmere architecture from 2010 is able to do better than CHA when cache coherency goes across sockets. They’re able to handle cache coherency operations within a die (likely at the L3 level) even if the cache line is homed to a remote socket.

But this sort of excellent cross socket performance isn’t typical. Westmere likely benefits because all off-core requests go through a centralized global queue. Compared to the distributed approach used since Sandy Bridge, that approach suffers from higher latency and low bandwidth for regular L3 accesses. But its simplicity and centralized nature likely enables excellent cross-socket cache coherency performance.

Broadwell’s cross-socket performance is similar to CHA’s. By looking at results from both cluster and die and early snoop modes, we can clearly see that the bulk of core to core cache coherence latency comes from how directory lookups are performed. If the transfer happens within a cluster on die node, coherency is handled via the inclusive L3 and its core valid bits. If the L3 is missed, the coherency mechanism is much slower. Intra-die, cross-node latencies are already over 100 ns. Crossing dies only adds another 10-20 ns. Early snoop mode shows that intra-die coherency can be quite fast. Latencies stay within the 50 ns range or under, even when rings are crossed. However, early snoop mode increases cross socket latency to about 140 ns, making it slightly worse than CNS’s.

We don’t have clean results from Milan-X because hypervisor core pinning on the cloud instance was a bit funky. But our results were roughly in line with Anandtech’s results on Epyc 7763. Intra-CCX latencies are very low. Cross-CCX latencies within a NPS2 node were in the 90 ns range. Crossing NPS2 nodes brought latencies to around 110 ns, and crossing sockets resulted in ~190 ns latency. Centaur’s cross socket performance in this category is therefore better than Epyc’s. More generally, CHA puts in its best showing in this kind of test. It’s able to go toe to toe with AMD and Intel systems that smacked it around in our “clean” memory access tests. “Clean” here means that we don’t have multiple cores writing to the same cache line. Unfortunately for Centaur, we’ve seen exactly zero examples of applications that benefit from low core-to-core latency. Contested atomics just don’t seem to be very common in multithreaded code.Final WordsBefore CNS, Centaur focused on low power consumer CPUs with products like the VIA Nano. Some of that experience carries over into server designs. After all, low power consumption and small core size are common goals. But go beyond the cpu core, and servers are a different world. Servers require high core counts, lots of IO, and lots of memory bandwidth. They also need to support high memory capacity. CHA delivers on some of those fronts. It can support hundreds of gigabytes of memory per socket. Its quad channel DDR4 memory controller and 44 PCIe lanes give adequate but not outstanding off-chip bandwidth. CHA is also the highest core count chip created by Centaur. But eight cores is a bit low for the server market today. Dual socket support could partially mitigate that. Unfortunately, the dual socket work appears to be unfinished. CHA’s low cross socket bandwidth will cause serious problems, especially for NUMA-unaware workloads. It also sinks any possibility of using the system in interleaved mode, where accesses are striped across sockets to provide more bandwidth to NUMA-unuaware applications at the expense of higher latency.

So what went wrong? Well, remember that cross socket accesses suffer extra latency. That’s common to all platforms. But achieving high bandwidth over a long latency connection requires being able to queue up a lot of outstanding requests. My guess is that Centaur implemented a queue in front of their cross socket link, but never got around to validating it. Centaur’s small staff and limited resources were probably busy covering all the new server-related technologies. What we’re seeing is probably a work in progress.

Centaur has implemented the protocols and coherence directories necessary to make multiple sockets work. And they work with reasonably good latency. Unfortunately, the cross-socket work can’t be finished because Centaur doesn’t exist anymore, so we’ll never see CHA’s full potential in a dual socket setup. Special thanks to Brutus for setting the system up and running tests on it.
