本篇將介紹如何利用ggplot2繪制柱狀圖以清楚地展示各腫瘤某一指標的比較（如腫瘤緩解率）和GSVA分析結果。

?

? ? 1.腫瘤緩解率結果展示：

首先啟動程序包

library(ggplot2)

然后讀取數據

df<-read.csv("easy_input1.csv")

數據結構如下圖，為2列。第一列為不同癌癥，第二列為score

按照score排序，并畫圖：

df<-df[order(df$score,decreasing = T),]

df$index<-seq(1,nrow(df))

p<-ggplot(df,aes(x=index,y=score,fill=ID)) +

? geom_bar(stat = 'identity',width = 0.8) +

? scale_fill_brewer(type = "Qualitative", palette = "Paired") + #bar的顏色

?

? scale_y_continuous(breaks=seq(-100, 100, 10), #y軸刻度

?????????????????? ??expand = c(0,0)) + #上下都不留空

? scale_x_discrete(expand = expand_scale(mult = c(0.01,0))) + #左邊留空，右邊到頭

?

? #畫3條橫線

? geom_hline(yintercept = c(-30,0,20),

???????????? linetype = 5, #畫虛線

???????????? size = 0.3) + #線的粗細

?

? #其他主題

? labs(x = "", y = "Maximum Change in Tumor Size (%)",

?????? title = "A Maximum Change in Tumor Size, According to Tumor Type") +

? theme_bw() + #去除背景色

? theme(panel.grid =element_blank()) + #去除網格線

? theme(panel.border = element_blank()) + #去除外層邊框

? theme(axis.line = element_line(colour = "black")) + #沿坐標軸顯示直線

? theme(axis.line.x = element_blank(), axis.ticks.x = element_blank(),

axis.text.x = element_blank()) + #去除x軸

?

? #圖例

? guides(fill = guide_legend(ncol = 5,title = NULL)) + #圖例分5列

? scale_size(range=c(5,20)) +

? theme(legend.background = element_blank(), #移除整體邊框

??????? #圖例的左下角置于繪圖區域的左下角

??????? legend.position=c(0,0),legend.justification = c(0,0))

??????? #改用下面這行，圖例就會位于頂部

??????? #legend.position="top")

由于Cancer12值很高，使得圖片右側很空。對其進行修改，讓y軸適合大部分數據，然后在最高的那個bar上標出實際數據

#設置坐標軸范圍，最大值設為50，以適應大多數數據

P <- p + coord_cartesian(ylim = c(-90,50)) + #y軸范圍，根據實際情況調整

? #添加數據標簽

? geom_text(data = subset(df, score > 50),

??????????? aes(index, 48,label=round(score))) + #在超過50的bar上標出實際數據

? geom_text(data = subset(df, index == 3),

??????????? aes(index, score + 1,label = "*")) + #作者的特殊標記

? geom_text(data = subset(df, index == nrow(df)),

??????????? aes(index, score - 3, label = "T"))? #作者的特殊標記

p

2. GSVA結果展示

2.1 score絕對值小于閾值的bar顯示為灰色

輸入數據，包含兩列：ID和score

df<-read.csv("easy_input2.csv")

按照score的值分組

df$group<-cut(df$score, breaks = c(-Inf,-4,4,Inf),labels = c(1,2,3))

按照score排序

df<-df[order(df$score,decreasing = F),]

df$index<-seq(1,nrow(df))

開始畫圖：

ggplot(df,aes(x=index,y=score,fill=group)) +

? geom_bar(stat = 'identity',width = 0.8) +

? scale_fill_manual(values = c("palegreen3","snow3","dodgerblue4")) + #bar的顏色

? scale_x_discrete(expand = expand_scale(add = .6)) +

? scale_y_continuous(breaks=seq(-30, 20, 5)) +

? coord_flip() + #坐標軸互換

?

? #畫2條橫線

? geom_hline(yintercept = c(-4,4),

???????????? color="white",

???????????? linetype = 2,#畫虛線

???????????? size = 0.3) + #線的粗細

?

? #寫label

? geom_text(data = subset(df, score > 0),

? aes(x=index, y=0, label=paste0(ID,"? "), color = group),#bar跟坐標軸間留出間隙

??????????? size = 3, #字的大小

??????????? hjust = "inward" ) +? #字的對齊方式

? geom_text(data = subset(df, score < 0),

??????????? aes(x=index, y=0, label=paste0("? ",ID), color = group),

??????????? size = 3, hjust = "outward") +?

? scale_colour_manual(values = c("black","snow3","black")) +

?

? #其他主題

? labs(x = "", y = "t value of GSVA score, tumor \n versus non-malignant",

?????? title = "Endothelial cells, tumour versus non-malignant") +

? theme_bw() + #去除背景色

? theme(panel.grid =element_blank()) + #去除網格線

? theme(panel.border = element_rect(size = 0.6)) + #邊框粗細

? theme(axis.line.y = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank()) + #去除y軸

? guides(fill=FALSE,color=FALSE) ?#不顯示圖例

2.2 pvalue>0.05的bar顯示為灰色

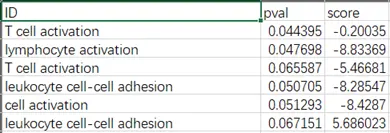

輸入數據，包含三列，ID、score和pvalue

df<-read.csv("easy_input3.csv")

#按照pvalue分組

df$p.group<-cut(df$pval, breaks = c(-Inf,0.05,Inf),labels = c(1,0))

#按照score分組

df$s.group<-cut(df$score, breaks = c(-Inf,0,Inf),labels = c(0,1))

#合并

df$ps.group <- paste0(df$p.group,df$s.group)

#根據pvalue和score分為3組

df$group<-ifelse(df$ps.group=='10','1',ifelse(df$ps.group=='11','2','3'))

按照score排序

df<-df[order(df$score,decreasing = F),]

df$index<-seq(1,nrow(df))

開始畫圖：只調整了顏色順序，其余跟“2.1”的畫圖代碼是一樣的

scale_fill_manual(values = c("palegreen3","dodgerblue4","snow3")) + #顏色
