AD5272數字電位器

2020-04-19 21:08 作者:TSINGHUAJOKING 0人讀過 | 我要投稿

前言

AD5272是Analog公司的電子可變電阻器。它可以被應用在各種電子線路中，進行自動參數設置和調節。AD5272是一個變阻器(rheostat)兩端器件，而不是電位器（Potentiometer：三端器件）。相對于美國Xicor公司的高精度數字電位器（X9C102,103,104等），它具有變阻級數高（1024級），工作頻帶等特點。

為了對比在博文“寄生電容[1]”對X9C104的討論，購買了三片樣品進行實驗驗證。

AD5272簡介

1. 內部結構

AD5272是一款MSOP 10管腳封裝的芯片。包括有工作電源、地線，與MCU連接的I2C接口，以及可變電阻的兩端（A-W）。此外還有一些輔助設置管腳。詳細介紹可以參見他的數據手冊。下面是AD5272的外部管腳以及內部結構功能圖。

從上圖可以看出AD5272對外的應用端口只有兩個（A,W），它是一個變阻器（Varistor：兩端器件）。

2. 產品特性

單通道、1024/256位分辨率
標稱電阻：20 kΩ、50 kΩ、100 kΩ
標稱電阻容差誤差：±1%(最大值)
50次可編程(50-TP)游標存儲器
可變電阻器模式下的溫度系數：5 ppm/℃
2.7 V至5.5 V單電源供電
雙電源供電：±2.5 V至±2.75 V(交流或雙極性工作模式)

3. 測試電路板

為了測試AD5272的性能，快速制作一塊電路板，將其封裝在電路板上，通過100mil的外部引線在面包板上與其它測試電路連接進行相關的測試。

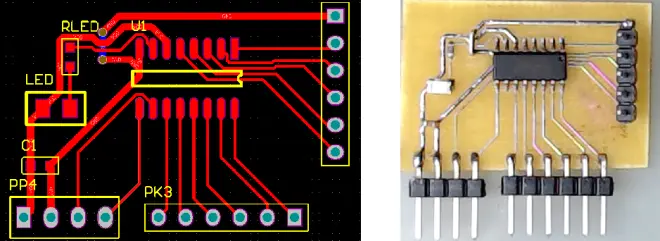

下面是設計的測試電路板的原理圖和PCB版圖。

測試方案

由于AD5272的控制是通過I2C總線完成的，所以需要借助于一塊MCU完成對AD5272的數字控制。下面介紹實驗MCU板以及相應的軟件開發。

1. 實驗MCU板

實驗電路板MCU采用STC8G1K08對AD5272進行控制。該電路板的詳細介紹在“基于STC8G1K08的實驗電路板[2]”中展示。

使用PK3端口的pin6(SCL)和pin7(SDA)[I2C總線第四個輸出備選端口]，與 AD5275的PK3的pin4(SCL),pin5(SDA)相連，組成實驗電路。

實際連接線路如下圖所示：

2. 測試軟件

（1） I2C 地址：AD5272的7位地址組成包括兩部分：

前5位位 :01011
最后兩位是由ADDR管腳的電壓確定，具體可以參見下面表格：

ADDRA1A07-BitGND110101111VDD000101100NC100101110

（2）相關子程序：AD5272的功能設置，可以參見其數據手冊中的說明。下面給出了AD5272接口程序。這些程序上層依賴于STC8G1K08的I2C操作的函數支持。

/* ***************************************** **?AD5272.H:????????????--?by?Dr.?ZhuoQing,?2020-04-19 ** **??Description: ** ***************************************** */ #ifndef?__AD5272__ #define?__AD5272__ //------------------------------------------------------------------------------ #ifdef?AD5272_GLOBALS ???#define?AD5272_EXT #else ???#define?AD5272_EXT?extern #endif?//?AD5272_GLOBALS //------------------------------------------------------------------------------ //*************************************** #define?AD5272_ADD_WRITE????????0x5e????????//?ADDR:?0:0x5e;?1:0x58;?NC:0x5c #define?AD5272_ADD_READ?????????0x5f????????//???????0:0x5f;?1:0x59;?NC:0x5d //------------------------------------------------------------------------------ void?AD5272Init(void); //------------------------------------------------------------------------------ #define?AD5272_CMD_NOP??????????0x0?????????//?NOP? #define?AD5272_CMD_WRITE_RDAC???0x1?????????//?Write?contents?of?serial?register?data?to?RDAC #define?AD5272_CMD_READ_RDAC????0x2?????????//?Read?contents?of?RDAC?wiper?register #define?AD5272_CMD_STORE_RDAC???0x3?????????//?Store?wiper?setting:Store?RDAC?setting?to?50-TP #define?AD5272_CMD_RESET????????0x4?????????//?Software?resiter:?Refresh?RDAC?with?last?50-TP?stored?value #define?AD5272_CMD_READ_50TP????0x5?????????//?Read?contents?of?50-TP?from?SDO?output?in?the?next?frame #define?AD5272_CMD_READ_ADD?????0x6?????????//?Read?address?of?the?last?50-TP #define?AD5272_CMD_WRITE_CNTR???0x7?????????//?Write?the?contents?of?the?serial?register?data?to?control?register #define?AD5272_CMD_READ_CNTR????0x8?????????//?Read?the?contents?of?the?control?register #define?AD5272_CMD_SHUTDOWN?????0x9?????????//?Software?shutdown;?D0=0:Normal?mode,?1:?shutdown?mode //------------------------------------------------------------------------------ unsigned?char?AD5272WriteByte(unsigned?char?*?pucByte); unsigned?char?AD5272ReadByte(unsigned?char?*?pucByte); unsigned?char?AD5272WriteCmd(unsigned?char?ucCmd,?unsigned?int?nData); unsigned?int?AD5272ReadInt16(void); //------------------------------------------------------------------------------ #define?AD5272_ENABLE_UPDATE????AD5272WriteCmd(AD5272_CMD_WRITE_CNTR,?0x2) #define?AD5272_DISABLE_UPDATE???AD5272WriteCmd(AD5272_CMD_WRITE_CNTR,?0x0) #define?AD5272_ENABLE_50TP??????AD5272WriteCmd(AD5272_CMD_WRITE_CNTR,?0x3) #define?AD5272_DISABLE_50TP?????AD5272WriteCmd(AD5272_CMD_WRITE_CNTR,?0x2) #define?AD5272_RESET????????????AD5272WriteCmd(AD5272_CMD_RESET,?0x0) #define?AD5272_WRITE_RDAC(x)????AD5272WriteCmd(ADC5272_CMD_WRITE_RDAC,?x) #define?AD5272_STORE_RDAC(x)????AD5272WriteCmd(ADC5272_CMD_STORE_RDAC,?x) void?AD5272WriteRDAC(unsigned?int?nRDAC); unsigned?int?AD5272ReadRDAC(void); unsigned?int?AD5272Read50TP(void); unsigned?int?AD5272Read50TPAddress(void); void?AD5272Store50TP(void); //*************************************** //?????????????END?OF?THE?FILE?:?AD5272.H //------------------------------------------------------------------------------ #endif?//?__AD5272__/* ***************************************** **?AD5272.C:?????????????--?by?Dr.?ZhuoQing,?2020-04-19 ** ***************************************** */ //------------------------------------------------------------------------------ #define?AD5272_GLOBALS????????1??????????????//?Define?the?global?variables #include?"AD5272.H" #include?"STC8G.H" //------------------------------------------------------------------------------ void?AD5272Init(void)?{ ????AD5272_ENABLE_UPDATE;???? } //------------------------------------------------------------------------------ unsigned?char?AD5272WriteByte(unsigned?char?*?pucByte)?{ ????I2CStart(); ????I2CSendData(AD5272_ADD_WRITE); ????if(I2CReceiveACK())?return?1; ???? ????I2CSendData(*(pucByte?++)); ????if(I2CReceiveACK())?return?2; ???? ????I2CSendData(*(pucByte)); ????if(I2CReceiveACK())?return?3; ???? ????I2CStop(); ????return?0; ???? } //------------------------------------------------------------------------------ unsigned?char?AD5272ReadByte(unsigned?char?*?pucByte)?{ ????I2CStart(); ????I2CSendData(AD5272_ADD_READ); ????if(I2CReceiveACK())?return?1; ???? ????*(pucByte?++)?=?I2CReceiveData(); ????I2CSendACK(); ????*(pucByte)?=?I2CReceiveData(); ????I2CSendNACK(); ????I2CStop(); ????return?0;???? } //------------------------------------------------------------------------------ unsigned?char?AD5272WriteCmd(unsigned?char?ucCmd,?unsigned?int?nData)?{ ????unsigned?char?ucData[2]; ???? ????ucData0[](unsigned?char?"0")((ucCmd?<<?2)?|?(nData?>>?8)); ????ucData1[](unsigned?char?"1")(nData?&?0xff); ???? ????return?AD5272WriteByte(ucData); } unsigned?int?AD5272ReadInt16(void)?{ ????unsigned?char?ucData[2]; ????unsigned?int?nNumber; ???? ????AD5272ReadByte(ucData); ????nNumber?=?ucData[0]?&?0x3; ????nNumber?=?(nNumber?<<?8)?+?ucData[1]; ????return?nNumber; ???? } //------------------------------------------------------------------------------ void?AD5272WriteRDAC(unsigned?int?nRDAC)?{ ????AD5272WriteCmd(AD5272_CMD_WRITE_RDAC,?nRDAC); } unsigned?int?AD5272ReadRDAC(void)?{ ????AD5272WriteCmd(AD5272_CMD_READ_RDAC,?0x0); ????return?AD5272ReadInt16(); } //------------------------------------------------------------------------------ unsigned?int?AD5272Read50TP(void)?{ ????AD5272WriteCmd(AD5272_CMD_READ_RDAC,?0x0); ????return?AD5272ReadInt16(); } unsigned?int?AD5272Read50TPAddress(void)?{ ????AD5272WriteCmd(AD5272_CMD_READ_ADD,?0x0); ????return?AD5272ReadInt16(); } void?AD5272Store50TOP(void)?{ ????????AD5272_ENABLE_50TP; ????????AD5272WriteCmd(AD5272_CMD_STORE_RDAC,?0x0);???? ????????AD5272_DISABLE_50TP;???????? } //*************************************** //????????????????END?OF?THE?FILE?:?AD5272.C //------------------------------------------------------------------------------

測試結果

將實驗電路板在面包板上連接，進行相關的性能測試。

1. 測量A-W電阻與設置參數之間的關系

通過軟件設置AD5272中RDAC的參數0~1023，每次遞增10，所測量得到的102個數據，測量A-W兩端的電阻。實驗數據如下：

res=[31.06,195.83,389.87,582.86,786.78,979.69,1173.92,1370.54,1564.31,1756.72,1959.14,2150.80,2342.31,2537.69,2731.21,2923.23,3115.95,3316.69,3506.39,3697.96,3895.03,4088.38,4279.93,4482.23,4672.36,4864.04,5057.67,5251.33,5443.37,5645.82,5836.31,6028.02,6217.46,6411.77,6604.22,6796.99,6997.55,7189.65,7378.69,7569.33,7762.46,7955.59,8156.52,8346.48,8537.97,8723.09,8917.34,9109.66,9302.17,9501.89,9693.09,9871.78,10066.15,10258.58,10450.60,10649.98,10840.70,11027.89,11207.98,11400.64,11592.36,11792.14,11982.23,12169.72,12343.51,12536.54,12726.77,12916.79,13114.53,13303.92,13470.17,13664.16,13855.01,14045.89,14243.87,14432.99,14619.03,14786.59,14978.64,15169.90,15358.20,15556.71,15742.90,15902.01,16094.12,16285.19,16473.98,16670.93,16856.67,17043.42,17202.99,17394.30,17585.01,17773.71,17968.68,18150.75,18303.86,18497.14,18686.51,18873.12,19071.08,19254.32,19397.46]

當RDAC=0時，AW電阻為31.06Ω。當RDAC=1020時，AW電阻為19397.46Ω。當RDAC= 1023時，AW電阻最大，為：19516Ω。

設置RDAC值與AW電阻之間的曲線為：

2. ?電阻誤差

分別對設置為0，511，1023三種情況測量100次電阻。統計相應的均值，標準差。

res0=[30.87,30.86,30.86,30.86,30.85,30.85,30.85,30.85,30.86,30.85,30.86,30.84,30.85,30.84,30.85,30.85,30.85,30.85,30.84,30.85,30.84,30.85,30.84,30.84,30.83,30.84,30.83,30.84,30.83,30.83,30.83,30.84,30.83,30.83,30.83,30.83,30.83,30.83,30.83,30.83,30.83,30.82,30.83,30.83,30.84,30.85,30.83,30.82,30.83,30.83,30.83,30.83,30.84,30.83,30.84,30.83,30.84,30.83,30.84,30.85,30.85,30.85,30.81,30.85,30.85,30.86,30.84,30.84,30.84,30.84,30.83,30.82,30.82,30.82,30.86,30.85,30.82,30.82,30.82,30.82,30.83,30.83,30.82,30.83,30.82,30.82,30.81,30.82,30.81,30.81,30.82,30.81,30.82,30.82,30.82,30.82,30.82,30.82,30.82,30.82] res511=[9886.59,9885.49,9884.89,9884.65,9884.25,9884.04,9883.44,9883.81,9883.81,9883.98,9883.22,9883.04,9882.73,9882.89,9882.43,9882.25,9882.13,9882.05,9882.12,9882.11,9881.86,9881.92,9881.59,9881.33,9881.01,9881.19,9880.85,9880.63,9880.58,9880.03,9880.37,9880.09,9879.74,9879.86,9879.55,9879.51,9879.57,9879.38,9879.17,9879.23,9879.08,9879.14,9878.99,9879.87,9880.95,9879.46,9879.07,9878.87,9879.52,9879.63,9879.74,9880.59,9878.89,9878.78,9879.26,9879.67,9878.96,9880.50,9879.96,9881.97,9883.24,9880.49,9878.37,9882.40,9878.21,9879.98,9878.29,9881.24,9878.03,9878.41,9877.99,9877.88,9877.75,9882.34,9882.86,9877.51,9877.60,9877.83,9877.64,9877.52,9877.77,9877.57,9877.61,9877.55,9877.38,9877.39,9877.44,9877.50,9877.51,9877.75,9877.60,9877.58,9877.58,9877.56,9877.51,9877.48,9877.47,9877.58,9877.63,9877.56] res1023=[19474.35,19472.00,19471.12,19468.77,19468.94,19468.57,19469.00,19469.81,19468.81,19470.02,19469.29,19468.49,19467.52,19467.61,19467.82,19466.50,19466.88,19467.17,19467.97,19467.12,19467.38,19467.07,19466.89,19466.63,19466.12,19466.01,19466.00,19465.62,19465.20,19464.87,19465.59,19464.10,19464.87,19464.26,19464.67,19463.29,19464.00,19463.85,19463.87,19464.63,19464.01,19463.51,19464.70,19465.08,19470.97,19464.57,19464.65,19465.02,19466.95,19465.71,19467.71,19471.63,19464.97,19465.42,19468.00,19473.37,19465.89,19470.16,19471.82,19476.47,19480.91,19465.24,19464.30,19472.95,19464.66,19466.91,19464.90,19472.64,19471.20,19466.71,19463.60,19464.15,19463.56,19469.07,19482.30,19463.76,19464.53,19464.39,19464.61,19465.06,19464.63,19464.50,19464.89,19464.03,19464.41,19464.80,19465.25,19464.87,19465.06,19465.52,19465.92,19466.03,19465.40,19466.14,19466.05,19466.48,19466.45,19466.98,19466.42,19466.69]

統計值如下表所示：

統計值設置0設置511設置1023平均值30.839880.0619466.99標準差0.0129775702.27143.3832

將三個測量曲線，減去他們的均值之后，繪制出測量誤差波動曲線：

3. 電阻的頻率響應

（1）測量原理：

使用AD9833模塊產生頻率可變的正弦信號，施加在R1與AD5272的串聯電路上。測量輸入電壓與分壓電壓之間的比值隨著頻率的改變和變化的情況，反映了AD5272電阻的頻率響應特性。

（2）交流信號源：信號源使用AD9833 DDS信號源。通過ZIGBEE無線命令設置它所產生的信號頻率。該模塊的詳細內容參見博文“AD9833數字信號發生器模塊[3]”

設置頻率所使用的命令為：

ad9833setfrequency xxxx

其中xxxx 設置頻率數值。

（3）測量結果

在AD5272設置為511時，測量信號頻率從100Hz到200kHz變化時，輸入信號，輸出信號以及它們的比值隨著頻率的變化的情況。

測量如下：其中包括輸出電壓vout，輸入電壓vin，vout/vin=ratio，以及信號的頻率四組數據。

vout=[0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03] vin=[0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20] ratio=[0.34,0.34,0.33,0.33,0.33,0.33,0.33,0.33,0.33,0.33,0.33,0.32,0.32,0.32,0.32,0.32,0.31,0.31,0.31,0.31,0.31,0.30,0.30,0.30,0.29,0.29,0.29,0.29,0.28,0.28,0.28,0.28,0.27,0.27,0.27,0.26,0.26,0.26,0.26,0.25,0.25,0.25,0.25,0.24,0.24,0.24,0.24,0.23,0.23,0.23,0.23,0.22,0.22,0.22,0.22,0.22,0.21,0.21,0.21,0.21,0.21,0.20,0.20,0.20,0.20,0.20,0.20,0.19,0.19,0.19,0.19,0.19,0.19,0.18,0.18,0.18,0.18,0.18,0.18,0.18,0.17,0.17,0.17,0.17,0.17,0.17,0.17,0.17,0.16,0.16,0.16,0.16,0.16,0.16,0.16,0.16,0.16,0.15,0.15,0.15] f=[100.00,2119.19,4138.38,6157.58,8176.77,10195.96,12215.15,14234.34,16253.54,18272.73,20291.92,22311.11,24330.30,26349.49,28368.69,30387.88,32407.07,34426.26,36445.45,38464.65,40483.84,42503.03,44522.22,46541.41,48560.61,50579.80,52598.99,54618.18,56637.37,58656.57,60675.76,62694.95,64714.14,66733.33,68752.53,70771.72,72790.91,74810.10,76829.29,78848.48,80867.68,82886.87,84906.06,86925.25,88944.44,90963.64,92982.83,95002.02,97021.21,99040.40,101059.60,103078.79,105097.98,107117.17,109136.36,111155.56,113174.75,115193.94,117213.13,119232.32,121251.52,123270.71,125289.90,127309.09,129328.28,131347.47,133366.67,135385.86,137405.05,139424.24,141443.43,143462.63,145481.82,147501.01,149520.20,151539.39,153558.59,155577.78,157596.97,159616.16,161635.35,163654.55,165673.74,167692.93,169712.12,171731.31,173750.51,175769.70,177788.89,179808.08,181827.27,183846.46,185865.66,187884.85,189904.04,191923.23,193942.42,195961.62,197980.81,200000.00]

在AD5272設置為1023時，測量信號頻率從100Hz到200kHz變化時，輸入信號，輸出信號以及它們的比值隨著頻率的變化的情況。

測量數據為：

vout=[0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02,0.02] vin=[0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20] ratio=[0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09] f=[100.00,2119.19,4138.38,6157.58,8176.77,10195.96,12215.15,14234.34,16253.54,18272.73,20291.92,22311.11,24330.30,26349.49,28368.69,30387.88,32407.07,34426.26,36445.45,38464.65,40483.84,42503.03,44522.22,46541.41,48560.61,50579.80,52598.99,54618.18,56637.37,58656.57,60675.76,62694.95,64714.14,66733.33,68752.53,70771.72,72790.91,74810.10,76829.29,78848.48,80867.68,82886.87,84906.06,86925.25,88944.44,90963.64,92982.83,95002.02,97021.21,99040.40,101059.60,103078.79,105097.98,107117.17,109136.36,111155.56,113174.75,115193.94,117213.13,119232.32,121251.52,123270.71,125289.90,127309.09,129328.28,131347.47,133366.67,135385.86,137405.05,139424.24,141443.43,143462.63,145481.82,147501.01,149520.20,151539.39,153558.59,155577.78,157596.97,159616.16,161635.35,163654.55,165673.74,167692.93,169712.12,171731.31,173750.51,175769.70,177788.89,179808.08,181827.27,183846.46,185865.66,187884.85,189904.04,191923.23,193942.42,195961.62,197980.81,200000.00]

在AD5272設置為100時，測量信號頻率從100Hz到200kHz變化時，輸入信號，輸出信號以及它們的比值隨著頻率的變化的情況。

測量數據為：

vout=[0.11,0.11,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.10,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.09,0.08,0.08,0.08,0.08,0.08,0.08,0.08,0.08,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.07,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.06,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.05,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.04,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03,0.03] vin=[0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.21,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20,0.20] ratio=[0.50,0.50,0.50,0.50,0.49,0.49,0.49,0.48,0.48,0.48,0.47,0.47,0.46,0.46,0.45,0.44,0.44,0.43,0.43,0.42,0.41,0.41,0.40,0.40,0.39,0.38,0.38,0.37,0.37,0.36,0.35,0.35,0.34,0.34,0.33,0.33,0.32,0.32,0.31,0.31,0.30,0.30,0.30,0.29,0.29,0.28,0.28,0.28,0.27,0.27,0.27,0.26,0.26,0.26,0.25,0.25,0.25,0.24,0.24,0.24,0.23,0.23,0.23,0.23,0.22,0.22,0.22,0.22,0.22,0.21,0.21,0.21,0.21,0.20,0.20,0.20,0.20,0.20,0.20,0.19,0.19,0.19,0.19,0.19,0.19,0.18,0.18,0.18,0.18,0.18,0.18,0.18,0.17,0.17,0.17,0.17,0.17,0.17,0.17,0.17] f=[100.00,2119.19,4138.38,6157.58,8176.77,10195.96,12215.15,14234.34,16253.54,18272.73,20291.92,22311.11,24330.30,26349.49,28368.69,30387.88,32407.07,34426.26,36445.45,38464.65,40483.84,42503.03,44522.22,46541.41,48560.61,50579.80,52598.99,54618.18,56637.37,58656.57,60675.76,62694.95,64714.14,66733.33,68752.53,70771.72,72790.91,74810.10,76829.29,78848.48,80867.68,82886.87,84906.06,86925.25,88944.44,90963.64,92982.83,95002.02,97021.21,99040.40,101059.60,103078.79,105097.98,107117.17,109136.36,111155.56,113174.75,115193.94,117213.13,119232.32,121251.52,123270.71,125289.90,127309.09,129328.28,131347.47,133366.67,135385.86,137405.05,139424.24,141443.43,143462.63,145481.82,147501.01,149520.20,151539.39,153558.59,155577.78,157596.97,159616.16,161635.35,163654.55,165673.74,167692.93,169712.12,171731.31,173750.51,175769.70,177788.89,179808.08,181827.27,183846.46,185865.66,187884.85,189904.04,191923.23,193942.42,195961.62,197980.81,200000.00]

將上面三組增益曲線繪制在同一張圖中：

結論

通過對AD5272的檢測測試，驗證了它作為可變電阻的基本特性。特別是動態特性，可以滿足一般音頻信號的放大與調節。

參考資料

[1]

寄生電容: https://zhuoqing.blog.csdn.net/article/details/104134132

[2]

基于STC8G1K08的實驗電路板: https://zhuoqing.blog.csdn.net/article/details/105612710

[3]

AD9833數字信號發生器模塊: https://zhuoqing.blog.csdn.net/article/details/104112884
